APPLICATIONS

APPLICATIONS. EXTERNAL WALLS.

VENTILATED FAÇADE

SOLUTION DESCRIPTION

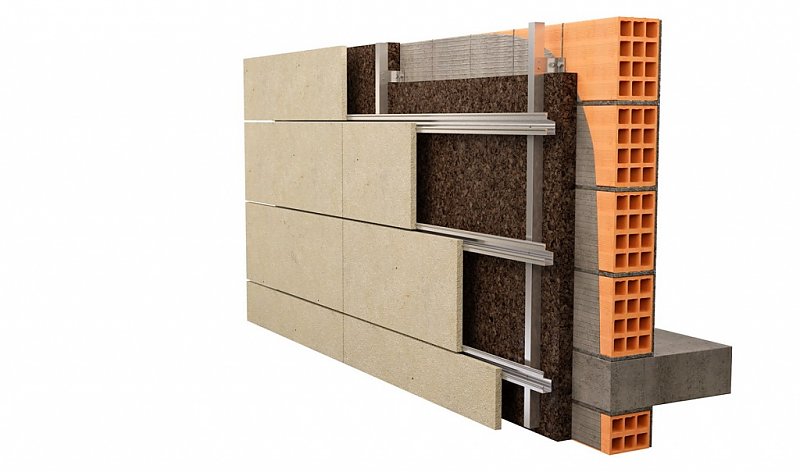

Thermal and acoustic insulation of exterior walls with Expanded Insulation Corkboardby the outside of wall.

TECHNICAL FEATURES

Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 a 0,040 W/m°C
Compression resistance at 10%: ≥ 100 KPa
Perpendicular Face Resistance: declared TR50 (test results 60 KPa)
Optimal behaviour in large temperature range: -180°C a 120°C
Does not absorb water by capillary action
Excellent soundproofing
Fire Resistance: Euroclasse E
Moisture factor resistance: MU 20

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x [10 to 320mm]
Other sizes: Upon Request

RECOMMENDATIONS FOR APPLICATION

Fix Expanded Insulation Corkboards to the outer surface of the support and add the ventilated façade system.
