APPLICATIONS

APPLICATIONS. EXTERNAL WALLS.

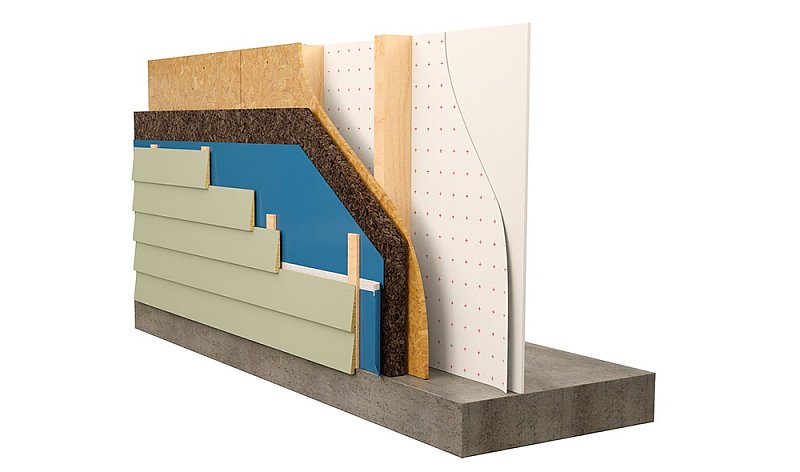

STANDARD LAP SIDING WITH EXTERIOR RIGID INSULATION

SOLUTION DESCRIPTION
Thermal and acoustic insulation of exterior walls with Expanded Insulation Corkboard by the outside of wall

TECHNICAL FEATURES
Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 to 0,040 W/m░C
Compression resistance at 10%: ≥ 100 KPa
Perpendicular Face Resistance: declared TR50 (test results 60 KPa)
Optimal behaviour in large temperature range: -180░C to 120░C
Does not absorb water by capillary action
Excellent soundproofing
Fire Resistance: Euroclass E
Moisture factor resistance: MU 20

ENVIRONMENTAL FEATURES
- 100% NATURAL AND ADDITIVE-FREE INDUSTRIAL PROCESS
- DURABILITY OF 50 TO 60 YEARS WITHOUT LOSS OF CHARACTERISTICS
- TOTALLY RECYCLABLE
- SINK CO2 (CARBON NEGATIVE)
- LOW EMBODIED ENERGY
- NO EMISSION OF HARMFUL COMPOUNDS FOR INDOOR AIR QUALITY

PRODUCT DIMENSIONS
Standard: 1000x500x [10 to 320mm]
Other sizes: Upon Request

RECOMMENDATIONS FOR APPLICATION
Fix Expanded Insulation Corkboards to the outer surface of the support and add the siding system
