APPLICATIONS

APPLICATIONS. ROOFS.

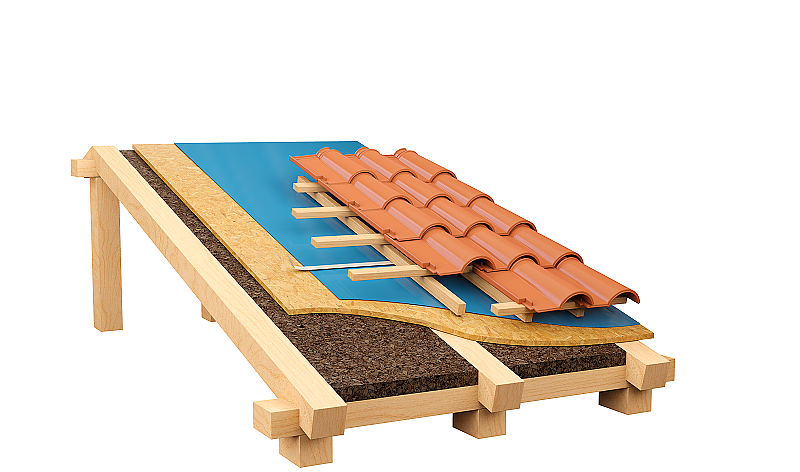

PITCHED ROOF WITH INTERNAL INSULATION BETWEEN RAFTERS

SOLUTION DESCRIPTION

Thermal and acoustic insulation of pitched roofs with Expanded Insulation Corkboard between rafters.

TECHNICAL FEATURES

Density: +/- 110 kg/m3
Thermal conductivity: λ = 0,039 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180°C a 120°C
Does not absorb water by capillary action
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x [10 to 300mm]
Other sizes: Upon Request

RECOMMENDATIONS FOR APPLICATION

Apply the Expanded Insulation Corkboard between rafters. Additional insulation under the rafters and ceiling finishing may be needed.
