APPLICATIONS

APPLICATIONS. CEILINGS + OTHER APPLICATIONS.

PIPE SECTION

SOLUTION DESCRIPTION

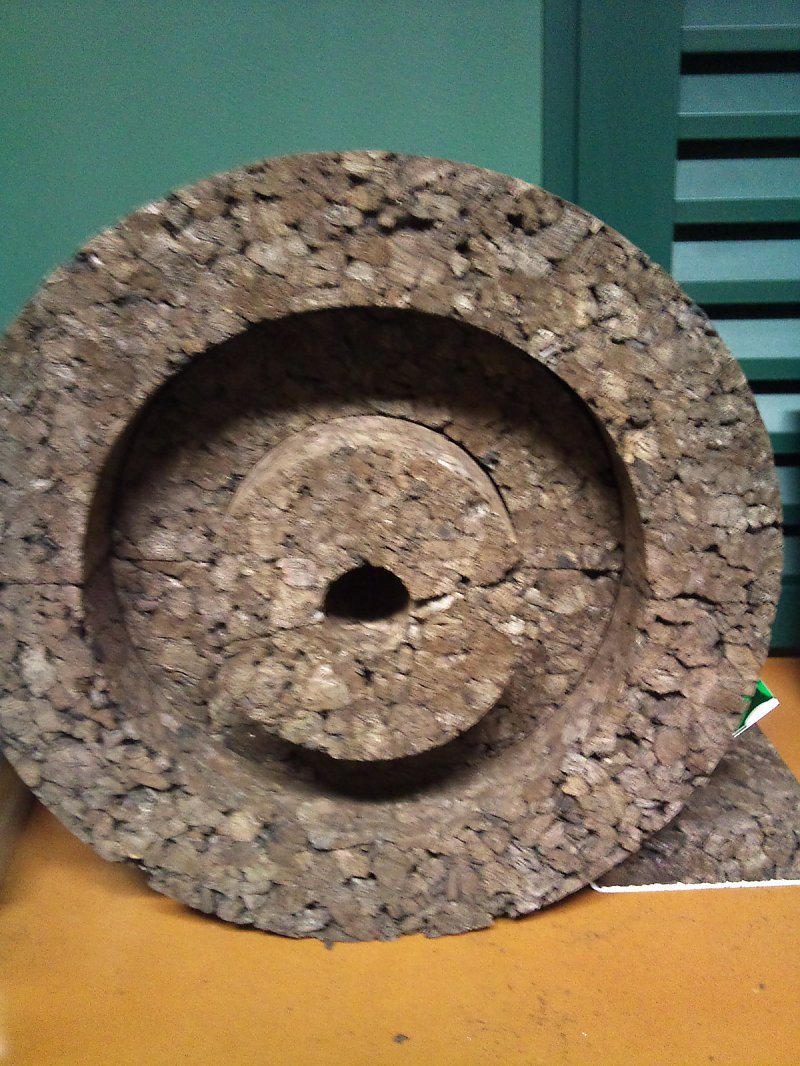

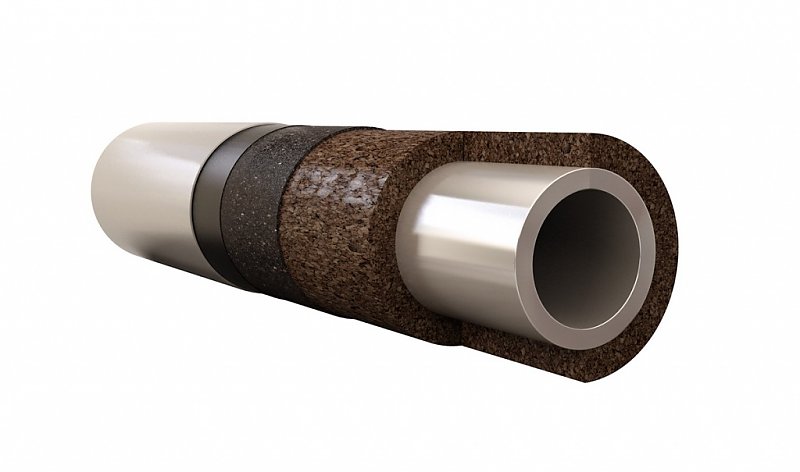

Thermal and acoustic insulation of pipes with Expanded Insulation Corkboard pipe-section.

TECHNICAL FEATURES

Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 to 0,040 W/m░C
Excellent thermal lag
Excellent soundproofing
Optimal behaviour in large temperature range: -180░ a 120░C
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Thicknesses and diameters specified according to project.

RECOMMENDATIONS FOR APPLICATION

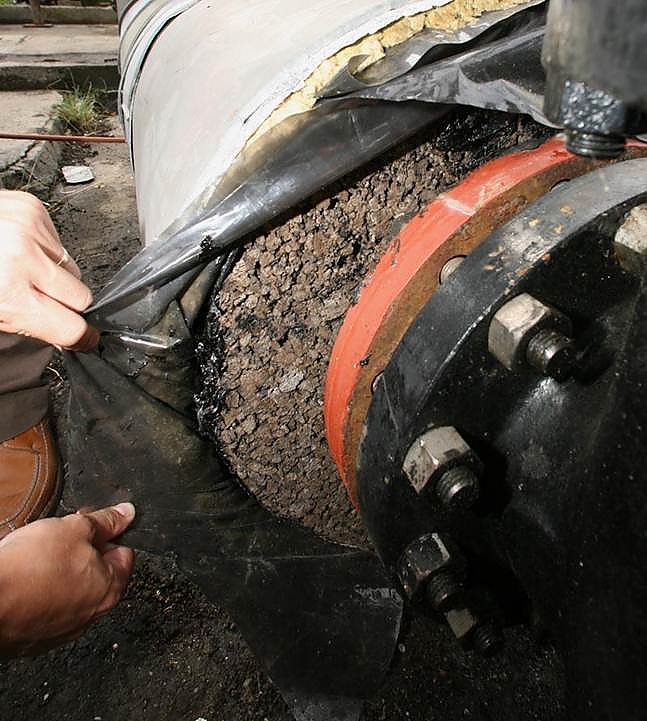

Place Expanded Insulation Corkboard pipe-sections over the pipes for instance water system or solar thermal system. Banding recommended.
