APPLICATIONS

APPLICATIONS. EXTERNAL WALLS.

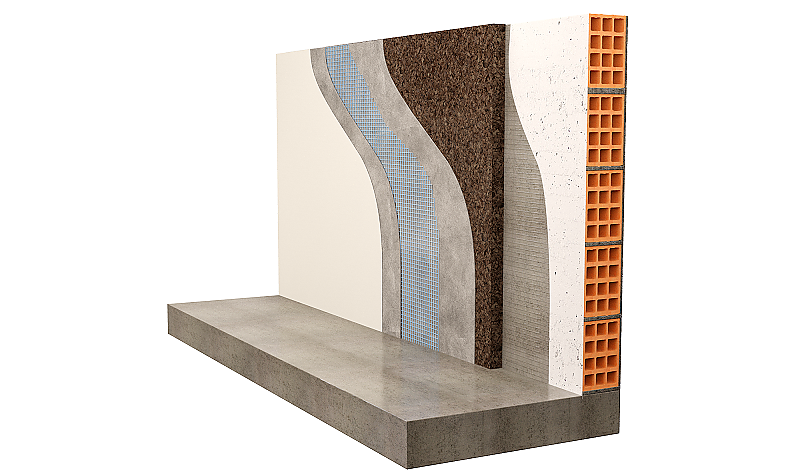

INTERNAL INSULATION FOR EXTERNAL WALLS

Solution Description

Thermal and acoustic insulation of exterior walls lined with Expanded Insulation Corkboardby the inside of wall

Technical Features

Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 to 0,040 W/m░C
Bending Resistance: ≥ 1,8x106 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Perpendicular Face Resistance: declared TR50 (test results 60 KPa)
Optimal behaviour in large temperature range: -180░C a 120░C
Does not absorb water by capillary action
Excellent soundproofing
Fire Resistance: Euroclasse E
Moisture factor resistance: MU 20

Environmental Features

- 100% natural and additive-free industrial process

- Durability of 50 to 60 years without loss of characteristics

- Totally recyclable

- Sink CO2 (CARBON NEGATIVE)

- Low embodied energy

- No emission of harmful compounds for indoor air quality

Product Dimensions

Standard: 1000x500x [10 to 320mm]
Other sizes: Upon Request

Recommendations for Application

Fix Expanded Insulation Corkboards to the inner surface of the support, and plaster afterwards.
