APPLICATIONS

APPLICATIONS. CEILINGS + OTHER APPLICATIONS.

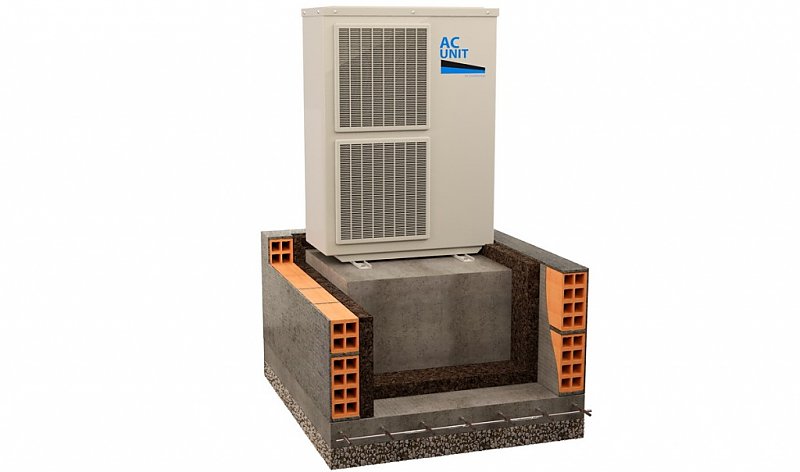

HVAC VIBRATION CONTROL

SOLUTION DESCRIPTION

Reduce or eliminate the transmission of vibrations and consequent noise to the building in which it is installed and the neighbouring buildings. All machines should be insulated.

TECHNICAL FEATURES

Standard density: +/- 110 kg/m3;  Compressive strength 10% = 155 KPa; Compression elasticity modulus, E = 2964 KPa

Medium density: 140 to 160kg/m3; Compressive strength 10% = 223 KPa; Compression elasticity modulus, E = 3506 KPa

High density: 170 to 190 kg/m3;  Compressive strength 10% = 332 KPa; Compressive elasticity modulus, E = 6747 KPa
Excellent thermal lag
Excellent acoustic insulation
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action
Fire resistance: EuroClass E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x [10 a 300mm]
HD 140-160 and 170/190 Kg/m3: 1000x500x [40 a 200mm]

Datasheet
