APPLICATIONS

APPLICATIONS. CEILINGS + OTHER APPLICATIONS.

FORMWORK INSULATION

SOLUTION DESCRIPTION

Thermal and acoustic insulation of structural slabs with Expanded Insulation Corkboard acting simultaneously as insulation against airborne noises and reducing thermal losses.

TECHNICAL FEATURES

Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 a 0,040 W/m░C
Excellent dimensional stability
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x [10 to 320mm]
Other sizes: Upon Request

RECOMMENDATIONS FOR APPLICATION

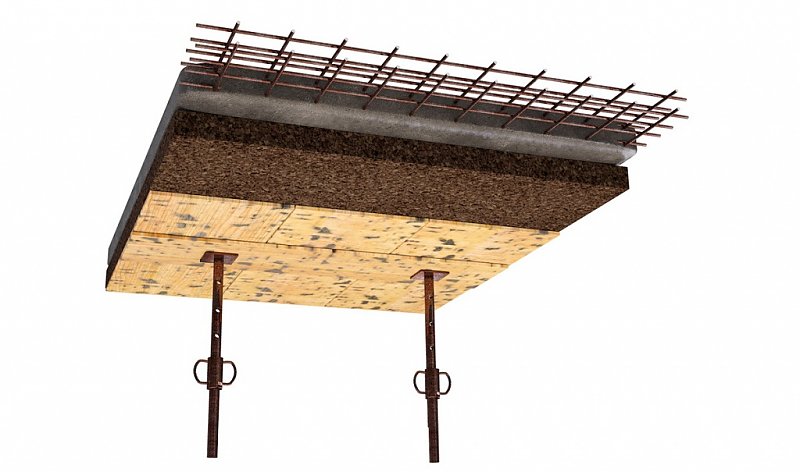

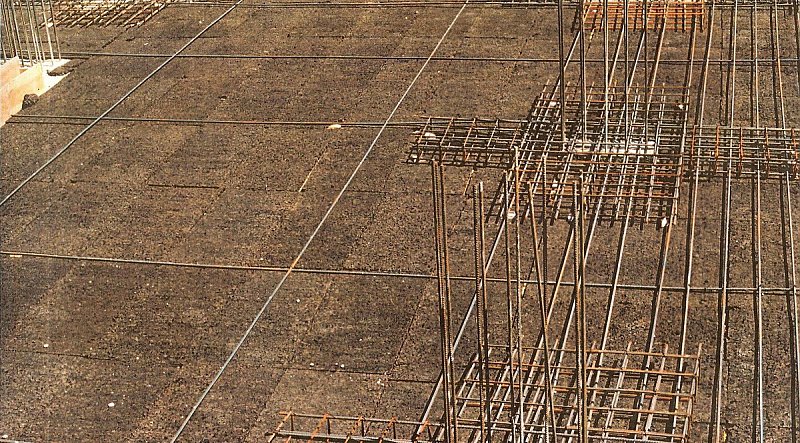

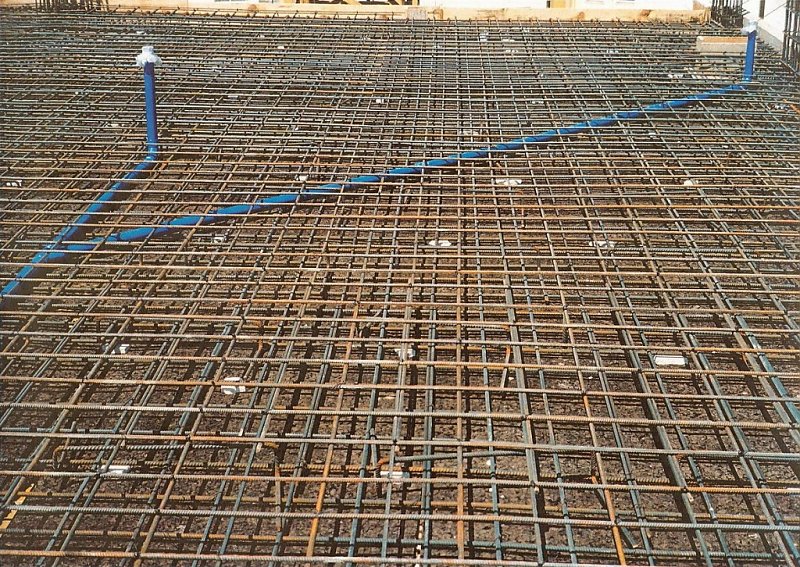

Apply the boards of Expanded Insulation Corkboard over the formwork and before the steel reinforcement bars (rebars) and concrete pouring.
