APPLICATIONS. SLAB AND FLOORS.

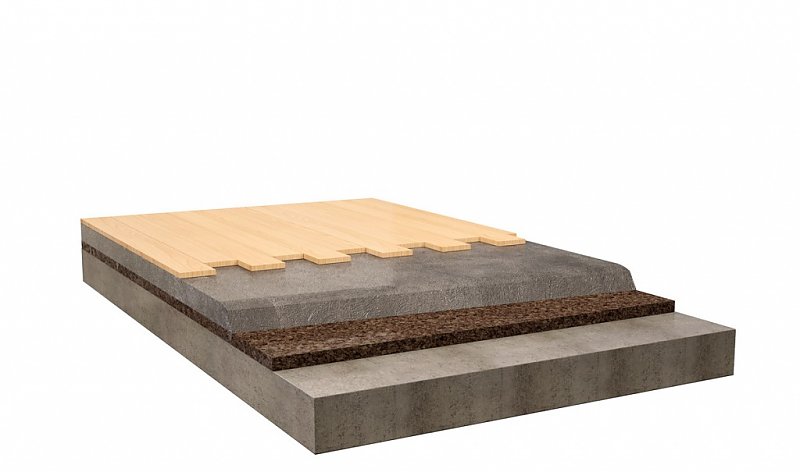

FLOATING SLAB WITH WOOD FLOORING

SOLUTION DESCRIPTION

Thermal and acoustic percussion noise insulation with Expanded Insulation Corkboard acting simultaneously as insulation against percussion noises and reducing thermal losses.

TECHNICAL FEATURES

Insulation against percussion noises:
a) Slab 140mm, Expanded Insulation Corkboard 20mm, Floating slab (screed) 50mm: ΔLw = 21 dB.
b) Slab 140mm, Expanded Insulation Corkboard 50mm, Floating slab (screed)50mm: ΔLw = 22 dB.
c) Slab 140mm, Expanded Insulation Corkboard 20mm, Floating slab (screed)70mm: ΔLw = 22 dB.
d) Slab 140mm, Expanded Insulation Corkboard 50mm, Floating slab (screed)70mm: ΔLw = 25 dB.

Density: +/- 110 kg/m3
Thermal conductivity: λ = 0,039 W/m°C
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x [10 to 300mm]
Other sizes: Upon Request

RECOMMENDATIONS FOR APPLICATION

Apply the boards of Expanded Insulation Corkboard over the slab for later placement of the screed and final flooring.
