APPLICATIONS

APPLICATIONS. SLAB AND FLOORS.

ELECTRIC UNDERFLOOR HEATING

SOLUTION DESCRIPTION

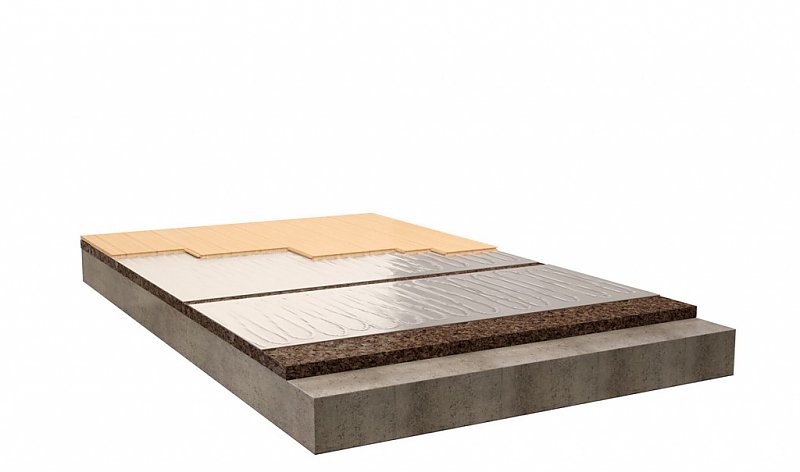

Thermal insulation for underfloor electrical heating systems using Expanded Insulation Corkboard and still promoting sound insulation.

TECHNICAL FEATURES

Density: 140 a 160 kg/m3
Thermal conductivity: λ = 0,040 a 0,042 W/m░C
Optimal behaviour in large temperature range: -180░C a 120░C
Compression resistance at 10%: ≥ 100 KPa
Excellent acoustic performance

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Dimensions: 1000 x 500 mm x [10 a 20mm]

RECOMMENDATIONS FOR APPLICATION

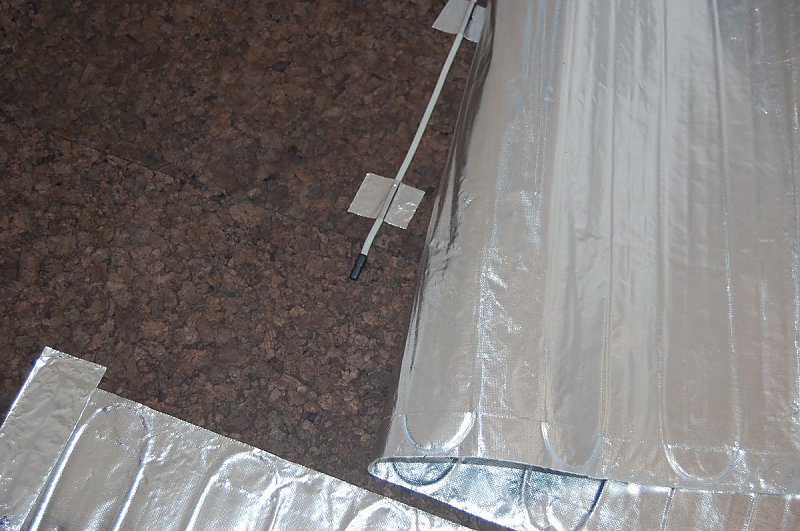

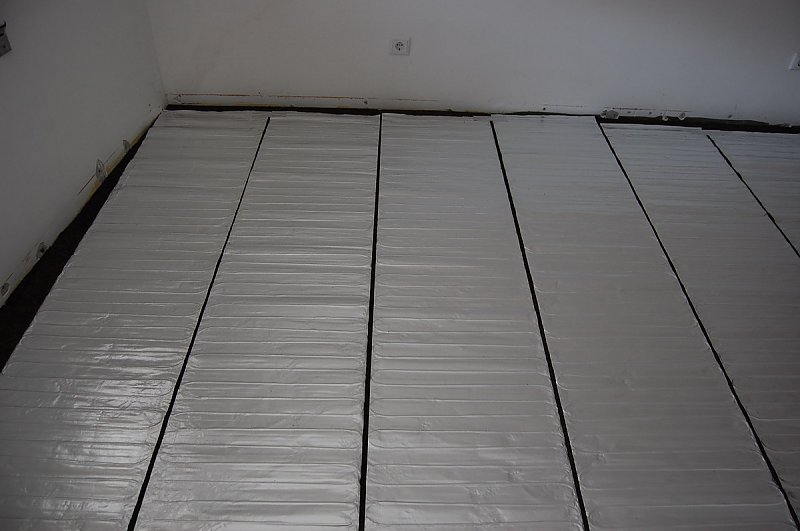

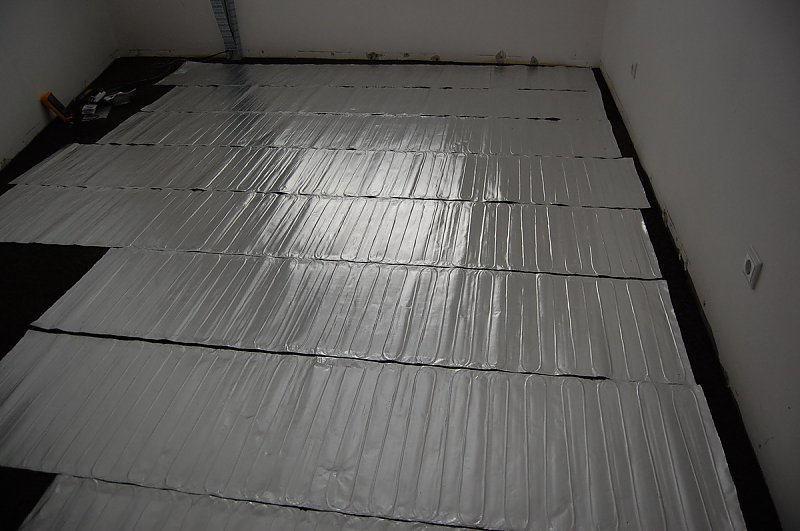

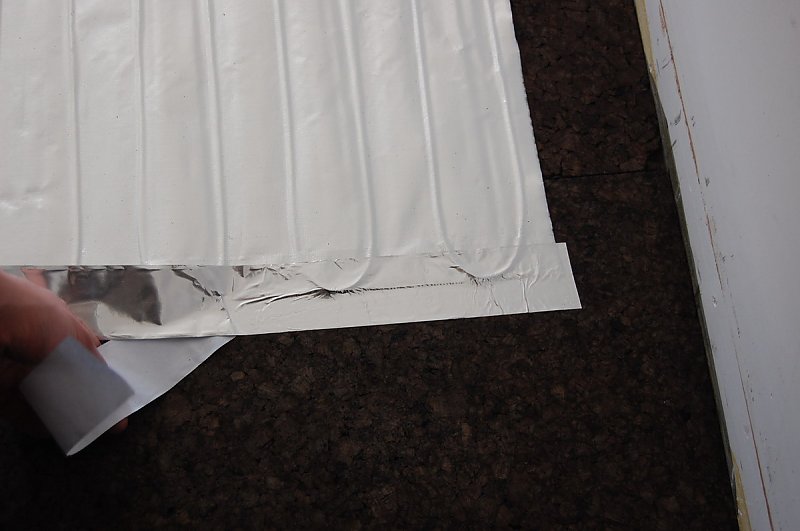

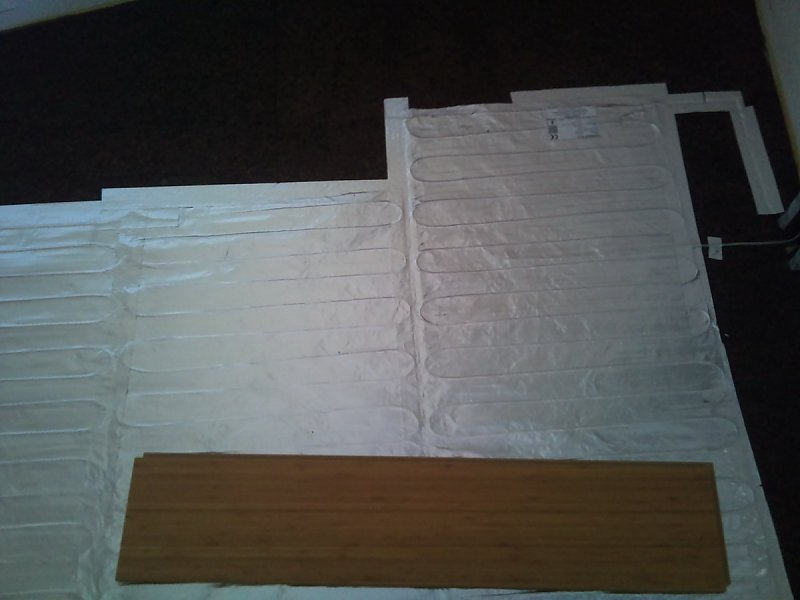

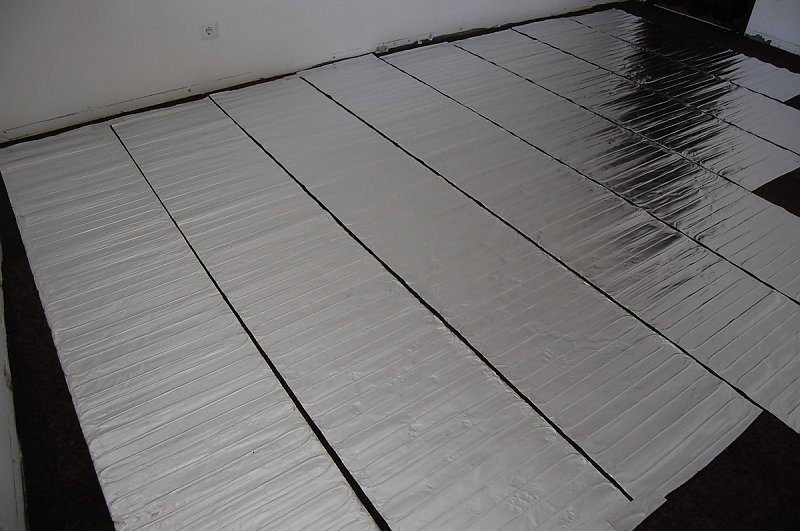

Apply the boards of Expanded Insulation Corkboard over the slab for later placement of electrical heating system and final flooring.
