APPLICATIONS

APPLICATIONS. EXTERNAL WALLS.

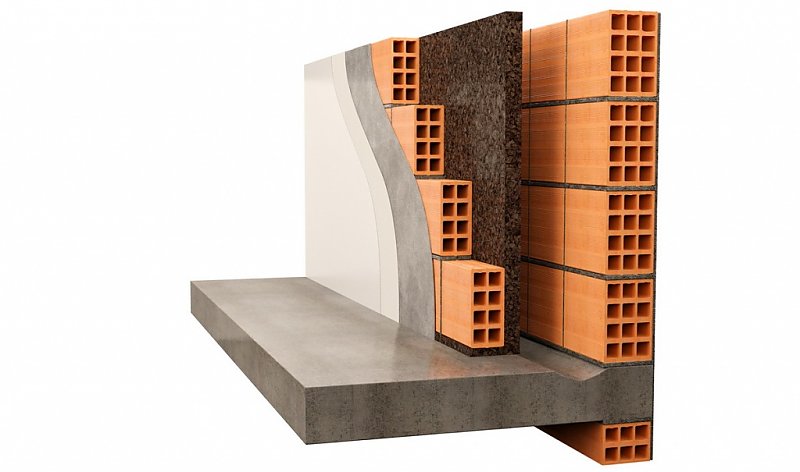

DOUBLE WALL WITH INSULATION PARTIALLY FILLING THE CAVITY

Solution Description

Thermal and acoustic insulation of double exterior walls with Expanded Insulation Corkboard, partially filling the cavity.

Technical Features

Airborne Sound Insulation Index: Rw = 53 dB
Density: +/- 110 kg/m3
Thermal conductivity: λ = 0,039 W/m°C
Excellent thermal lag
Excellent soundproofing
Optimal behaviour in large temperature range: -180°C a 120°C
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Fire Resistance: Euroclasse E

Environmental Features

- 100% natural and additive-free industrial process

- Durability of 50 to 60 years without loss of characteristics

- Totally recyclable

- Sink CO2 (CARBON NEGATIVE)

- Low embodied energy

- No emission of harmful compounds for indoor air quality

Product Dimensions

Standard: 1000x500x [10 to 300mm]
Other sizes: Upon Request

Recommendations for Application

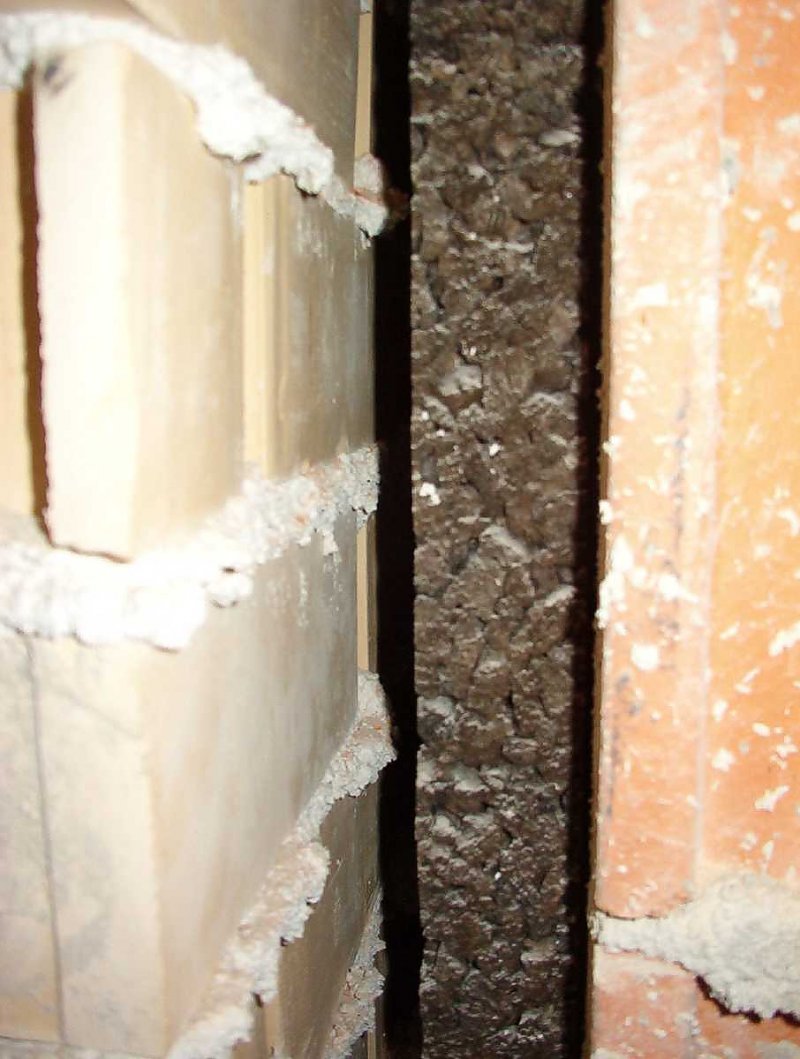

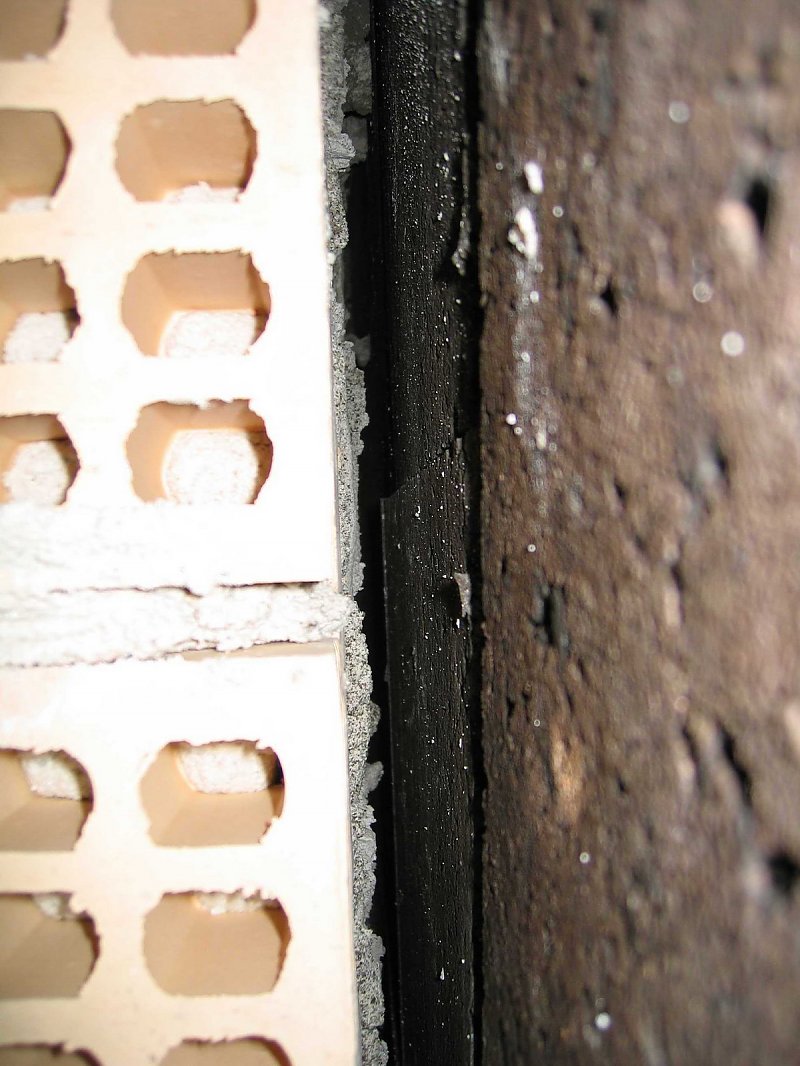

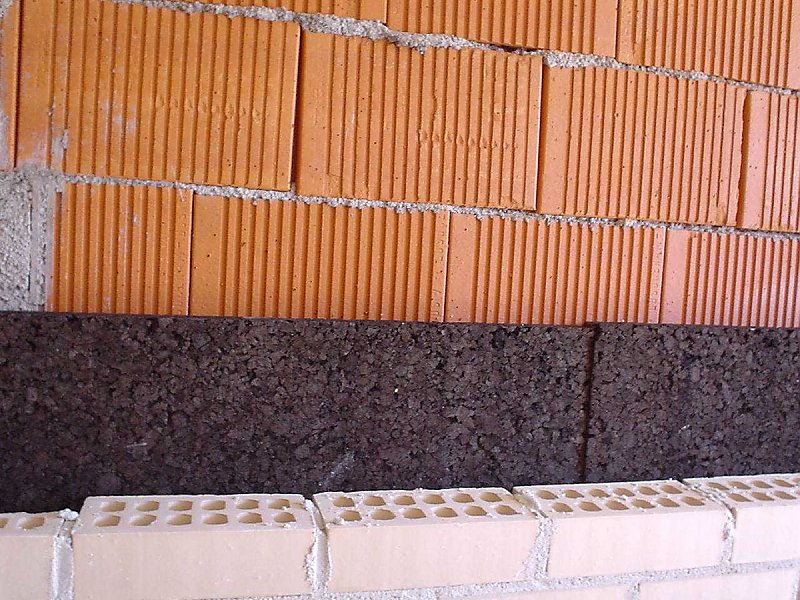

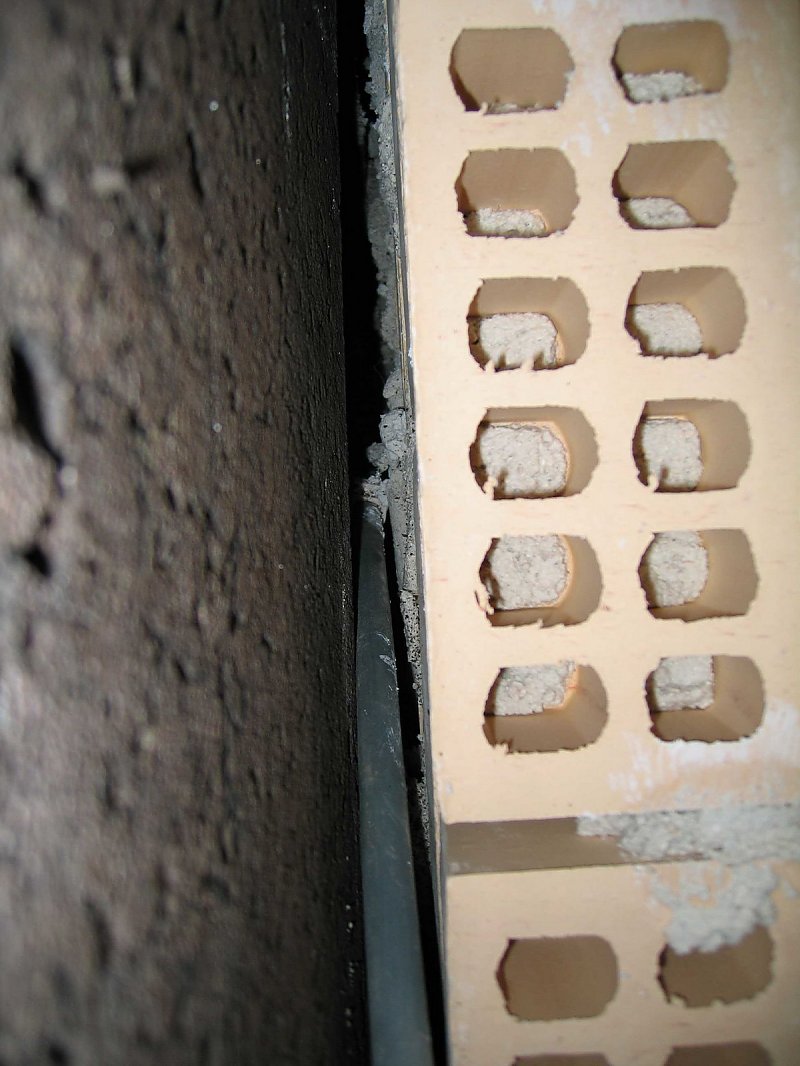

Partially fill the cavity between double brick walls with Expanded Insulation Corkboard glued on the internal wall.
