APPLICATIONS

APPLICATIONS. CEILINGS + OTHER APPLICATIONS.

DECOUPLING LAYER FOR WINDOW FRAMES AND CORE

SOLUTION DESCRIPTION

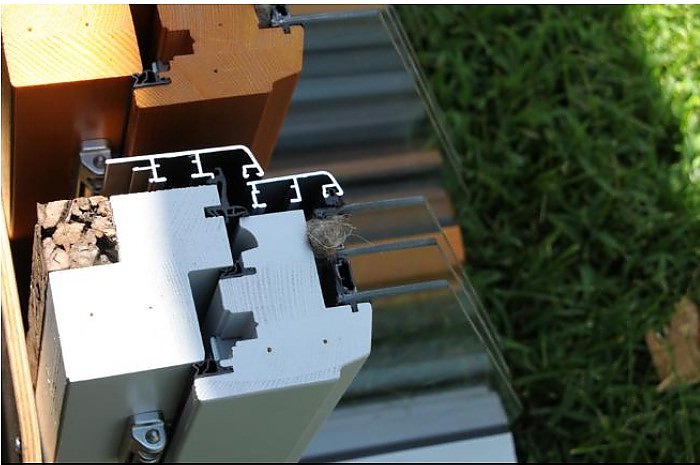

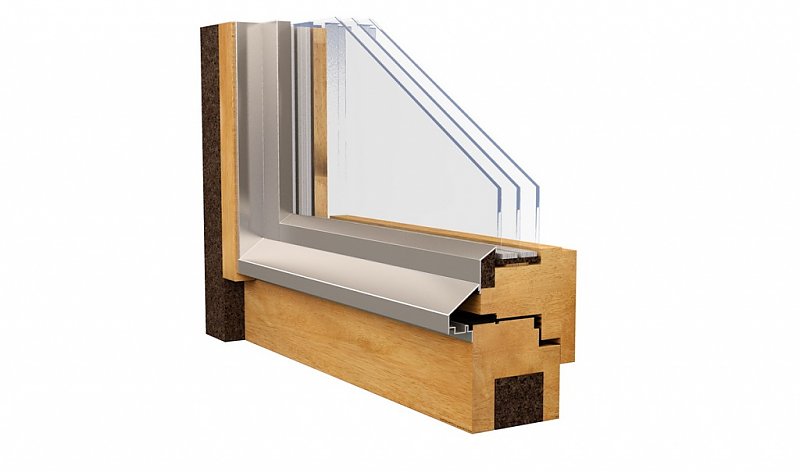

Decoupling layer for window frames with Expanded Insulation Corkboard ensuring acoustic insulation and providing a thermal barrier to the window frame system. Also possible to apply as window frame core.

TECHNICAL FEATURES

Standard density: 110 to 120 kg/m3 ; áThermal conductivity: λ = 0.037 to 0.040 W/m░C.
Medium density: +/- 130 kg/m3 ; áThermal conductivity: λ = 0.042 W/m░C.
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x [10 to 320mm]
Medium Density: 1000x500x [10 a 240mm]

RECOMMENDATIONS FOR APPLICATION

As per window manufacturer.
